CDC/CDD Type Preliminary Specifications

1. Feature
  • Small, Pin Compatible with LDH31&32 Series of Murata Manufacturing Co. Ltd.
  • Suitable for Delay up to 1/4 Clock Cycle
  • High Reliability Design Applying Semiconductor Packaging Process.
  • Optional Impedance and Delay Time requests can be accommodated.
PDF Catalog Download

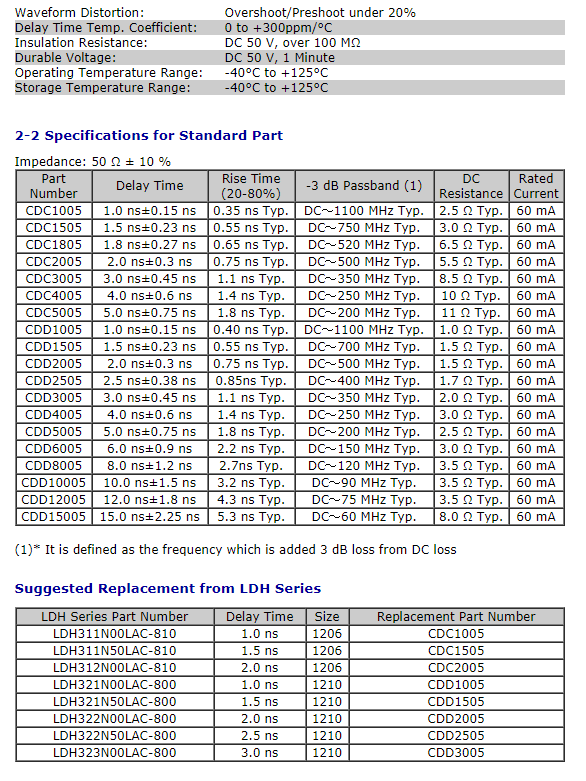

2. Preliminary Specifications

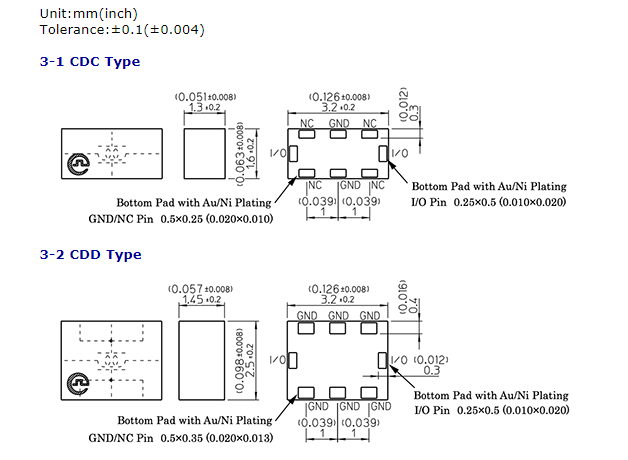

3. Package Dimensions & Pin Configuration

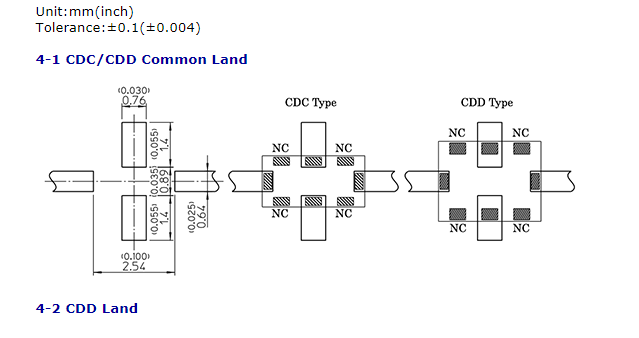

4. Suggested Land

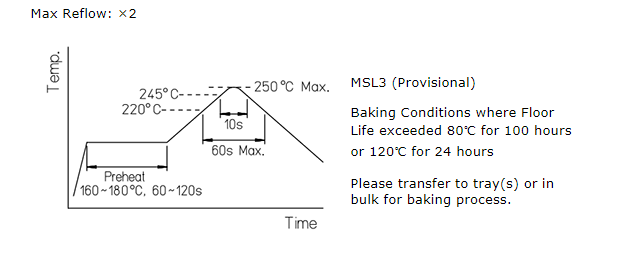

5. Reflow Soldering Conditions (Provisional)

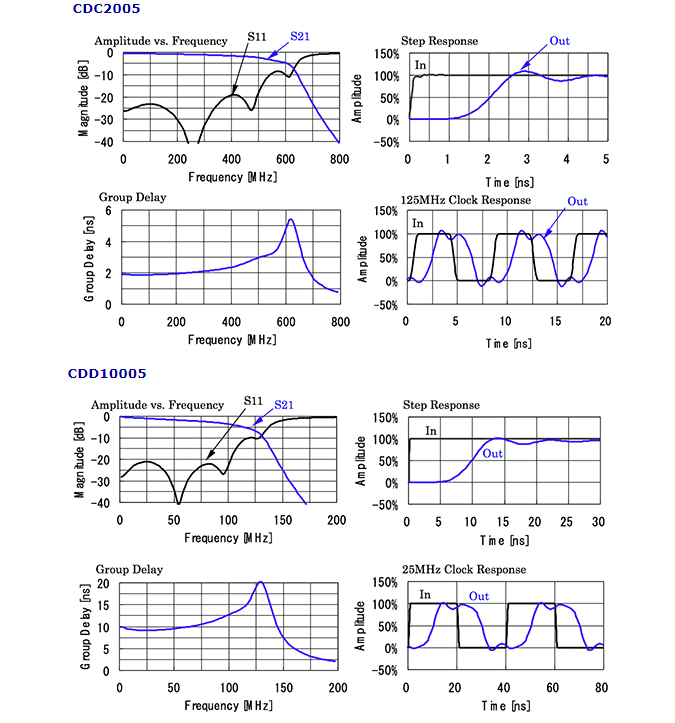

6. Characteristics
7. Time Schedule

Sample : 2Q-2016
Production: 3Q-2016
